Performance
- Max. extraction rate according to DIN/EN 61591:420 m/h
Functions
- 3 speeds
Design
- Telescopic design
- Push buttons
- 2 x 28 W halogen - energy saving lamps
Safety functions
- Dishwasher safe grease filter
Specifications :
- Diameter of air outlet (mm) :120 mm

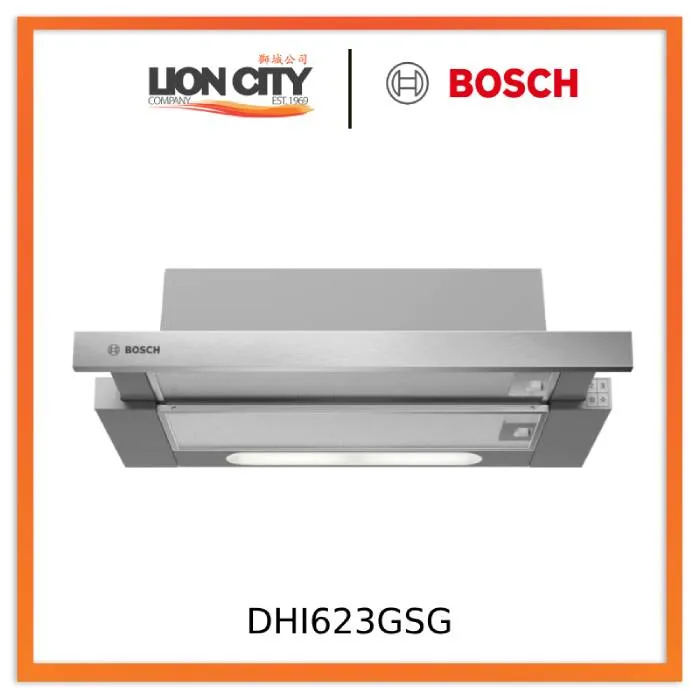

- Product name / Commercial code :DHI623GSG
- Color body :Stainless steel
- Connection Rating (W) :186 W
- Type of control :mechanical
- Length electrical supply cord (cm) :200.0 cm
- Current (A) :10 A
- Frequency (Hz) :50 Hz
- Grease filter material :Washable synthetic
- Grease filter type :Kassette
- Installation typology :Half-integrated
- Type of lamps used :Halogen
- Light Control Type :on/off
- Number of lights :2
- Total luminance (lux) :85 lux
- Type of manual control devices :Push buttons
- Material body :Lacquered
- Motor location :Integrated motor in hood body
- Number of motors :1

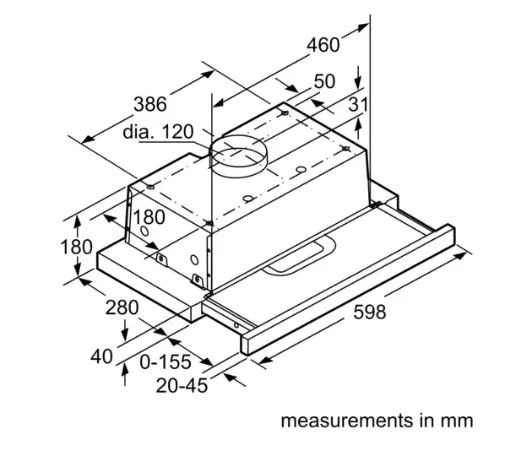

- Required niche size for installation (HxWxD) :140mm x 550mm x 280mm mm
- No-return airflow flap :No
- Noise level (dB(A) re 1 pW) :70 dB
- Odour filter :No
- Operating Mode :Convertible
- Plug type :GB plug
- Product group :Hood
- Number of speed settings :3
- Total power of the motors (W) :130 W
- Typology :Pull-out
- Voltage (V) :220-240 V
- Gross weight (kg) :8.000 kg
- Net weight (kg) :6.000 kg
- Design - line :Standard
- Mounting depth :280 mm
- Appliance width :598 mm
- Ducting connection diameter :120 mm
