DESIGN

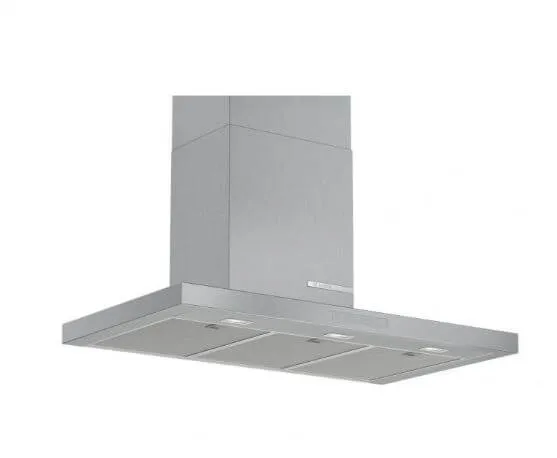

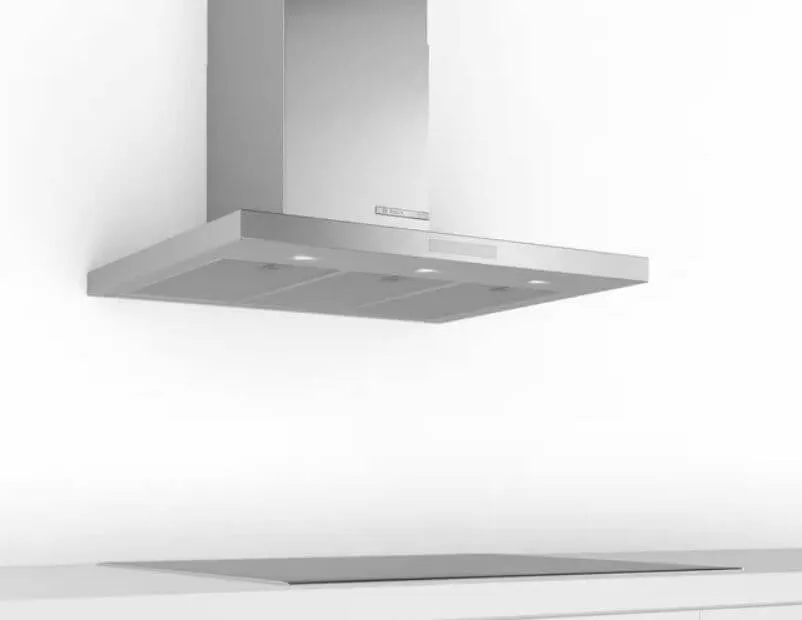

- Wall mounted hood
- Box brand design
- 90 cm wide

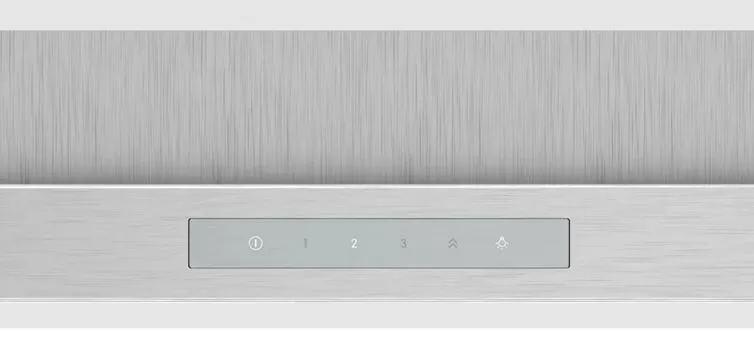

- TouchControl with Electronic display
KEY FUNCTIONS
- 3 speeds plus intensive setting
- Max. extraction rate according to EN 61591: 721 m/h
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 55 dB(A) re 1 pW (42 dB(A) re 20 Pa sound pressure)
- Intensive: 66 dB(A) re 1 pW (53 dB(A) re 20 Pa sound pressure)
- Extraction rate in recirculation mode:
- Max. normal use: 332 m/h
- Intensive: 393 m/h
- Noise levels in recirculation mode:
- Max. normal use: 70 dB(A) re 1 pW (57 dB(A) re 20 Pa sound pressure)
- Intensive: 73 dB(A) re 1 pW (60 dB(A) re 20 Pa sound pressure)
COMFORT
- Automatic intensive revert after 6 min.
- Easy to clean yes
- Efficient BLDC-technology
- 3 x 1.5W LED
- Light Intensity: 359 lux
- Colour Temperature: 3500 K

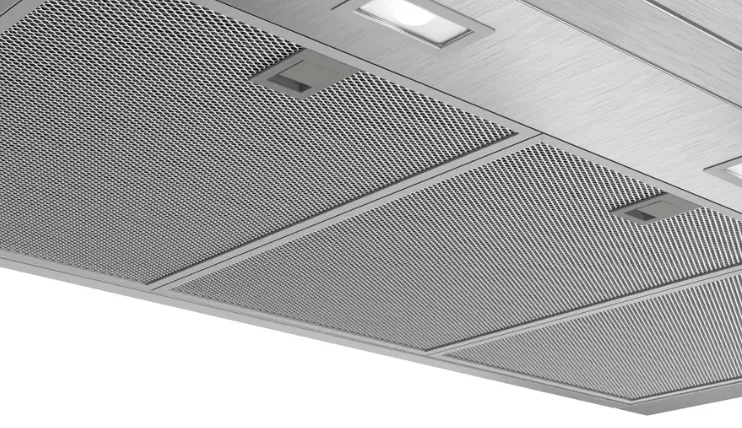

- Removable metal grease filter, dishwasher safe
- Additional noise insulation
- with one-way flap
- Energy Efficiency Class: A
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
TECHNICAL INFORMATION
- Suitable for ducted or recirculating operation
- Recirc. kit or clean air kit
- Wall fixing system

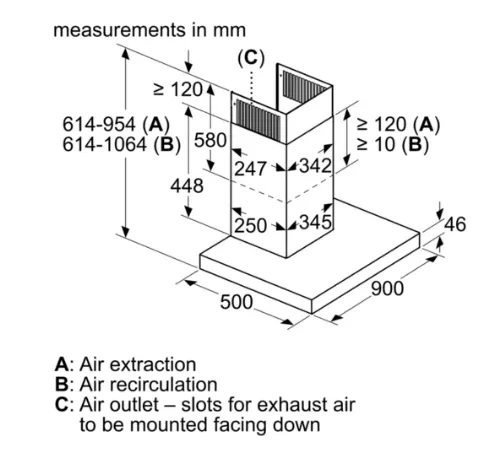

- Dimensions recirculating with CleanAir module (HxWxD mm):
- 689 x 898 x 500 - mounting with outer chimney
- 809-1139 x 898 x 500 - mounting with telescopic chimney
- Diameter pipe 150 mm ( 120 mm enclosed)
- Dimensions exhaust air (HxWxD mm): 628-954 x 898 x 500
- Dimensions recirculating (HxWxD mm): 628-1064 x 898 x 500
- Electrical connection rating: 145 W
- Electrical cable lenght 1.3 m
- Voltage: 220 - 240 V
