General
- Width 90 cm
- Depth of the product 505 mm
- Built-in / Free-standing Built-in
- Operating Mode Convertible
- Max. air recirculation 650 m/h
- Type of control setting and signalling devices touch control
Construction type
- Diameter of air outlet 150 mm
- Colour Stainless steel
- Installation type Wall-mounted
- Material of the body zinc plated
- Material chimney Stainless steel
- Motor location Integrated motor in hood chimney
- Number of motors 1
- Operating Mode Convertible
- Typology Wall-mounted
Performance
- Extraction rate according to EN 61591 max. 800 m/h
- Noise max. Normal Level: 72 dB*
- 3 speeds
- Wall mounted hood
- Stainless steel material
- 90 cm wide
- Box design

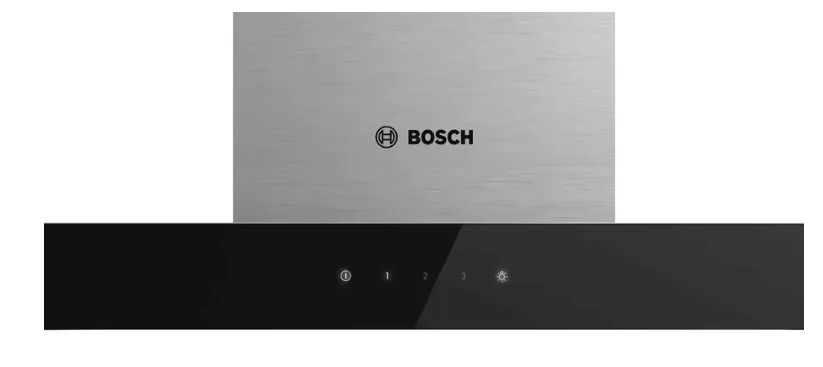

- TouchControl
Comfort
- LED Lighting

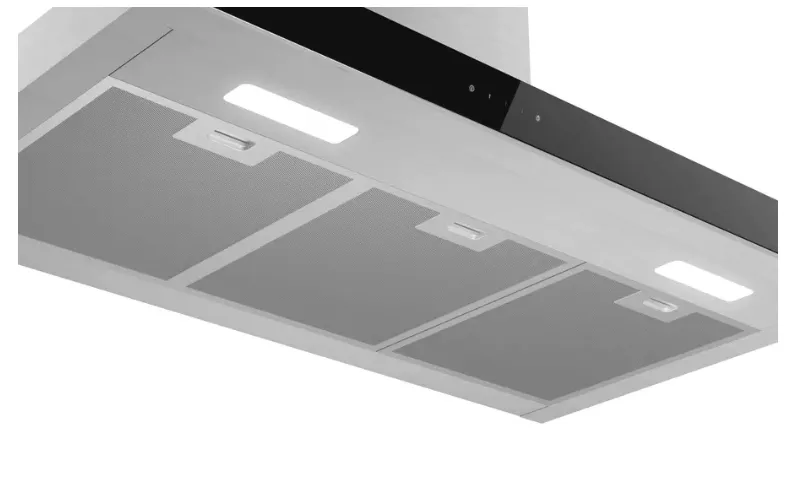

- 3 Metal grease filter
Technical information:
- Suitable for ducted or recirculating operation

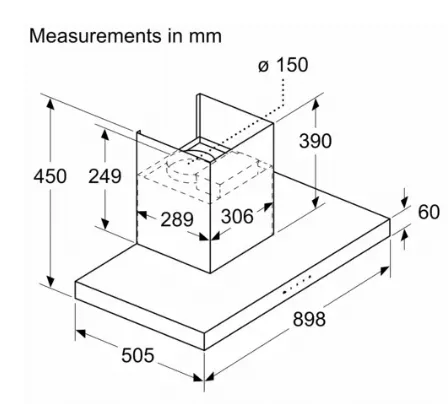

- Dimensions exhaust air (HxWxD mm): 450-840 x 898 x 505
- Dimensions recirculating (HxWxD mm): 450-450 x 898 x 505
- Electrical cable lenght 1.8 m
- Voltage: 220 - 240 V
- Diameter pipe 150 mm ( 150 mm enclosed)
- Plug type_old: GB plug
