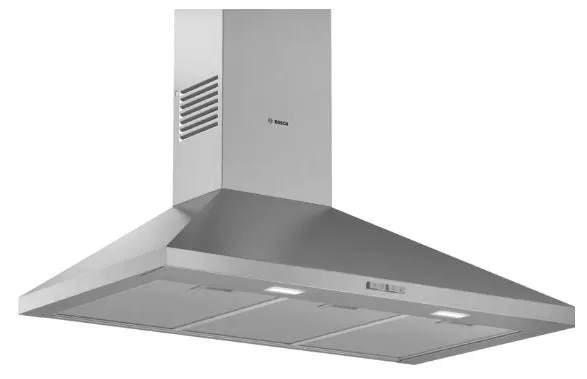

1.BOSCH DWP96BC50B PYRAMIDAL STAINLESS STEEL HOOD (90CM)
The wall-mounted chimney hood: Mount it on the wall for complete freedom in your kitchen planning
Performance
- Extraction rate according to EN 61591 15 cm:
max. Normal use 600 m/h
Intensive NO_FEATURE m/h - Energy Efficiency Class: A
- Max. noise level according to EN 60704-3 and EN 60704-2-13: 69 dB(A) re 1 pW (57 dB(A) re 20 Pa sound pressure)
- Noise max. Normal Level: 69 dB*
Comfort:
- 3 fan speeds via push buttons
- Removable metal grease filter, dishwasher safe
Tecnical information:
- Suitable for ducted or recirculating operation

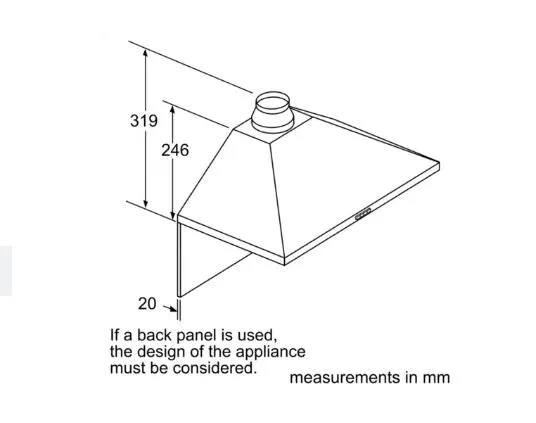

- Dimensions exhaust air (HxWxD mm): 799-975 x 900 x 500
- Dimensions recirculating (HxWxD mm): 799-975 x 900 x 500
- Diameter pipe 150 mm ( 120 mm enclosed)
- Electrical connection rating: 220 W
- Electrical cable lenght 1.3 m

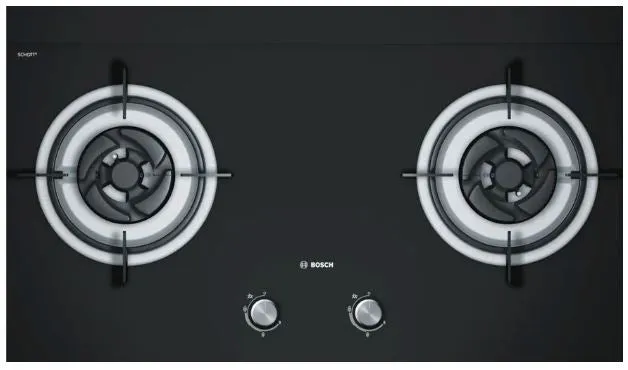

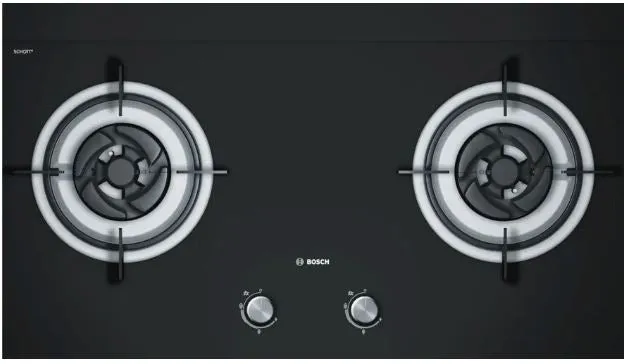

2.Bosch PBD7232SG Gas hob 78 cm Tempered glass, Black
Hob Type
- 2 gas burners
- Max pow. burner left: 4500 W, Max pow. burner right: 4500 W
Design
- 78.5 cm Gas Tempered Glass Hob
Key Functions
- Precise-flame burner for safe and quick ignition
- Pure brass burner
- Flame-fail protection
- Preset for liquid gas
Dimensions

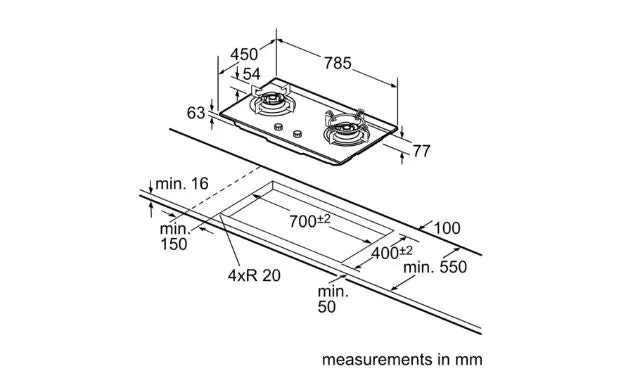

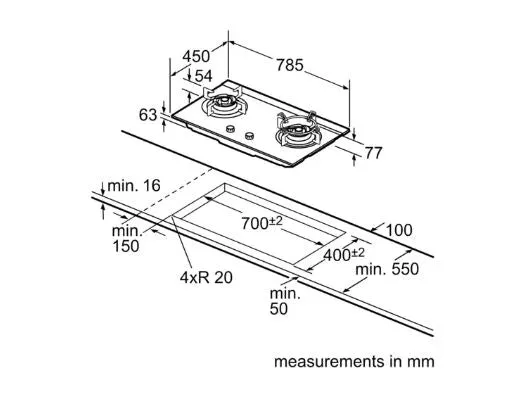

- Dimensions of the product (HxWxD mm): 80 x 785 x 450
- Required niche size for installation (HxWxD mm): 80 x 700-700 x 400-400
- Length of mains cable: 200 cm
- Gas connection rating: 9000 W
