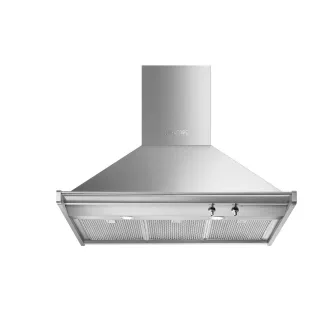

1.KD90HXE
Type
- Product family Hood
- Hood Type Decorative wall hood
- Design Chimney
- Extraction Extraction
- Material Stainless steel
- Type of steel Brushed
- EAN code 8017709243593
- Hood width 90 cm
Aesthetics
- Aesthetic Classica
- Colour Stainless steel
- Finishing Satin
- Logo Applied
Technical Features
- No. of lights 2
- Light type LED
- Light Power 1 W
- Light color temperature scale (K) 4000 K
- Free outlet maximum capacity 815 m/h
- Motor power 275 W
- No. of filters 3
- Anti-grease filters Stainless steel
- Vent outlet 150 mm
- Minimum distance from GAS hob 750 mm
- Minimum distance from ELECTRIC hob 650 mm
- Non return valve Yes
Electrical Connection
- Electrical connection rating 277 W
- Voltage 220-240 V
- Frequency (Hz) 50-60 Hz
- Power supply cable length 1000 mm
Logistic Information

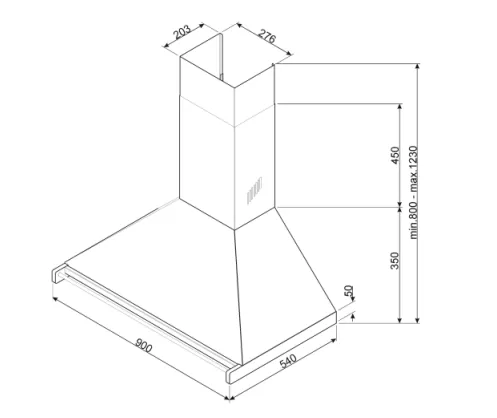

- Dimensions of the product (mm): 1230x900x555
- Width: 900 mm
- Depth (mm): 555 mm
- Product Height (mm): 1230 mm
- Net weight (kg): 18.200 kg
- Gross weight (kg): 25.100 kg

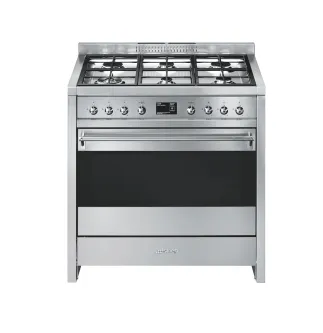

2.A1-9
Type
- Cooker size 90x60 cm
- N. of cavities with energy label 1
- Cavity heat source ELECTRICITY
- Hob type Gas
- Type of main oven Thermo-ventilated
- Cleaning system main oven Catalytic
- EAN code 8017709229160
- Energy efficiency class A
Aesthetics
- Serie Opera
- Aesthetic Classica
- Colour Stainless steel
- Finishing Fingerproof
- Design Professional
- Door With 2 horizontal strips
- Upstand Yes
- Type of pan stands Cast Iron
- Hob colour Stainless steel
- Command panel finish Finger friendly stainless steel
- Control knobs Smeg Classic
- Controls colour Stainless steel
- Display TFT
- Display languages DA, DE, EN, ES, FR, IT, NL, PL, PT, RU, SV
- No. of controls 8
- Serigraphy colour Black
- Handle Smeg Classic
- Handle Colour Brushed stainless steel
- Glass type Eclipse
- Storage compartment Drawer
- Logo Assembled st/steel
- Logo position Facia below the oven
Electrical Connection
- Electrical connection rating 3200 W
- Current 14 A
- Voltage 220-240 V
- Power supply cable length 120 cm
- Frequency 50/60 Hz
- Terminal block 3 poles
Logistic Information

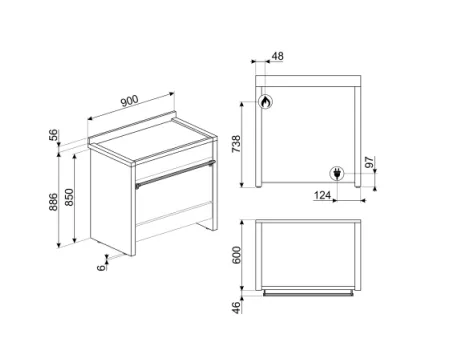

- Dimensions of the product HxWxD (mm): 900x900x600 mm
- Width (mm): 900 mm
- Product Height (mm): 900 mm
- Depth (mm): 600 mm
- Dimensions of the packed product (mm): 1070X960X680 mm
- Gross weight (kg): 107.600 kg
- Net weight (kg): 93.400 kg
